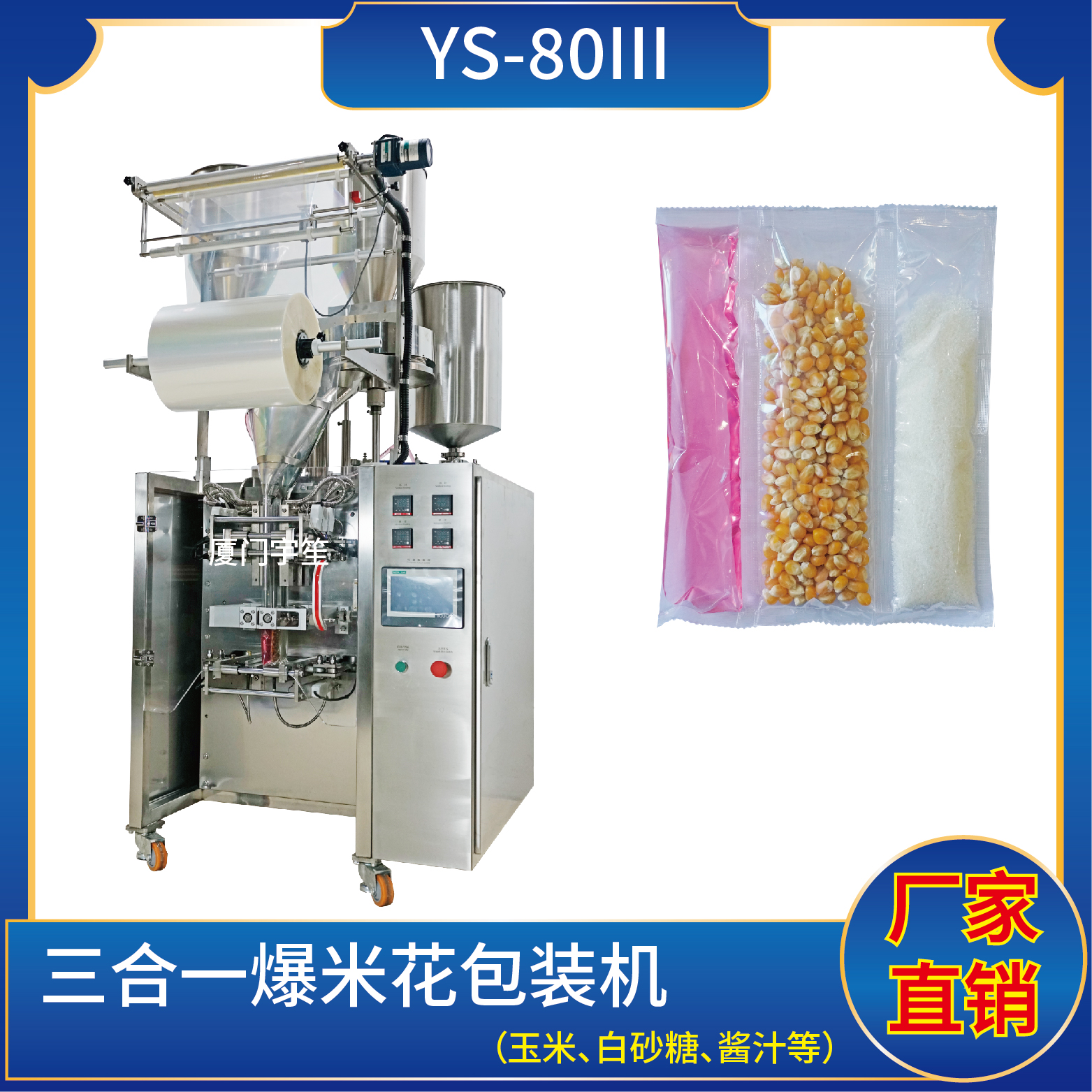

YS-80III 三合一爆米花包裝機(三列）
YP-80III 3 In 1 popcorn packing machine
YS- 80III三合一爆米花包裝機
特 點 Characteristic
1、適用于食品、醫藥、化工、化妝品行業中顆粒、粉劑、液體、醬料等三合一物品的計量包裝。
The machine is suitable for food, medicine, chemical, cosmetics industry in the particle, powder, liquid, sauce and other three-in-one items measurement packaging.
2、可自動完成制袋、計量、下料、封合、分切、計數，可根據客戶要求配置打印批號等功能。All the works of bag making,measuring, filling,sealing, cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、觸摸屏操作，PLC控制，伺服電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差控制在1℃內。
The touch screen operation, PLC contro,servo motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、包裝材料：復合膜。
Packaging materials：composite film.
封口方式 Sealing Type
三邊封口
Three sides sealing
技術參數
Technical Parameters
計量范圍：1-100g（爆米花參考數值：白糖50g、玉米100g、油50g）
Measuring range: （Reference value for popcorn: 50g sugar,100g corn, 50g oil）
制袋尺寸：袋長（L）：60 - 220mm 膜寬（W）：50 - 450mm（爆米花膜寬360）
Bag size ：（Popcorn film width 360）
包裝速度：10 - 25bags/min
Packing Speed
外型尺寸: 850*1100*1900mm
Dimension ( L * W * H )
整機重量：350kg
Weight
總 功 率：AC220V / 50-60HZ / 1.5KW
Toal power
1、適用于食品、醫藥、化工、化妝品行業中顆粒、粉劑、液體、醬料等三合一物品的計量包裝。
The machine is suitable for food, medicine, chemical, cosmetics industry in the particle, powder, liquid, sauce and other three-in-one items measurement packaging.
2、可自動完成制袋、計量、下料、封合、分切、計數，可根據客戶要求配置打印批號等功能。All the works of bag making,measuring, filling,sealing, cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、觸摸屏操作，PLC控制，伺服電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差控制在1℃內。
The touch screen operation, PLC contro,servo motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、包裝材料：復合膜。
Packaging materials：composite film.
計量范圍：1-100g（爆米花參考數值：白糖50g、玉米100g、油50g）
Measuring range: （Reference value for popcorn: 50g sugar,100g corn, 50g oil）
制袋尺寸：袋長（L）：60 - 220mm 膜寬（W）：50 - 450mm（爆米花膜寬360）
Bag size ：（Popcorn film width 360）
包裝速度：10 - 25bags/min
Packing Speed
外型尺寸: 850*1100*1900mm
Dimension ( L * W * H )
整機重量：350kg
Weight
總 功 率：AC220V / 50-60HZ / 1.5KW
Toal power
